A8 Maintenance Project Interlaken East–Brienz (BE): Tunnel Giessbach, Chüebalm and Sengg

Client
Federal Roads Office ASTRA, Infrastructure Branch Thun
Consultant
IUB Engineering Ltd in consortium
Period
2019-2025
Construction costs
CHF 101 Mio.
Scope of services
  • 31 MK intervention concept

  • 32 MP project

  • 41 Tender documents

  • 51 Execution project

  • 52 Construction management

  • 53 Execution file

Description

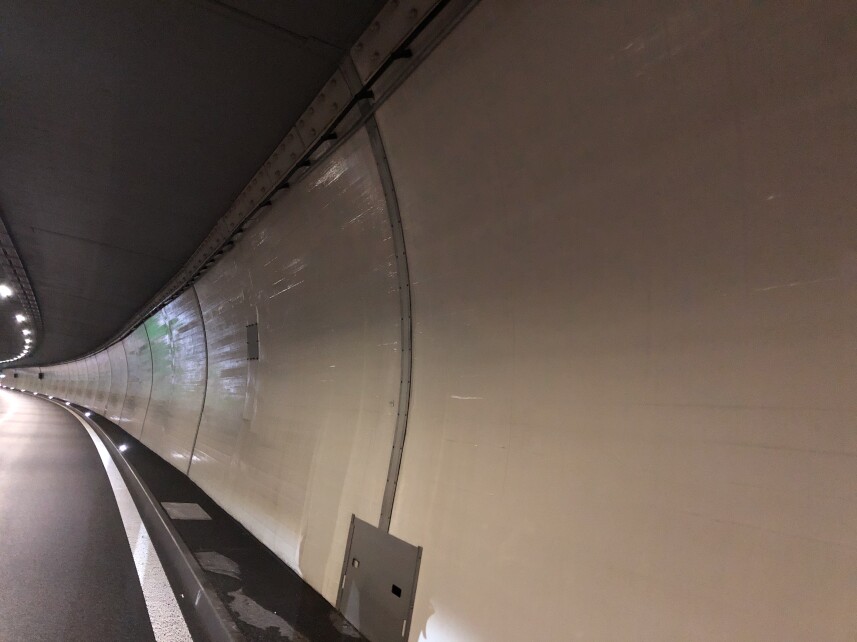

The aim of the measures is to preserve the structures and increase tunnel safety. To achieve this, concrete repairs were carried out, the tunnel lining was renewed and the roadway lining was replaced.
To increase safety, the tunnels have been fitted with a new roadway drainage system, new cable tube blocks in the benches and a new tunnel ventilation system. Some power stations have had their technical rooms extended, while others have been refurbished with EES equipment.
In the Giessbach tunnel, the existing intermediate slab was reinforced in the event of fire, and controlled exhaust air dampers were installed for the new ventilation system. This also involved converting the existing ventilation units at the portals. All the work in the tunnel was carried out with total night-time closures.

Main Data
  • Giessbach Tunnel 3,340 m

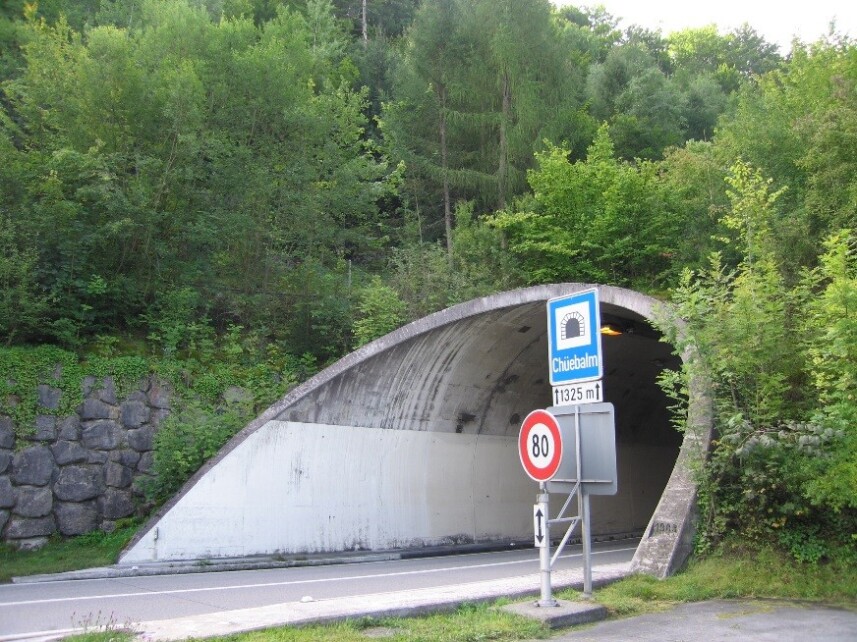

  • Chüebalm Tunnel 1,325 m
  • Sengg Tunnel 864 m
